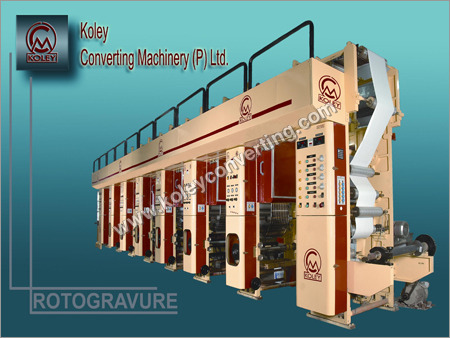

Foil Printing Machine

Technical Specifications

Basic Specification
Web substrate
Number of colours
Web Width
Web roller
Machine speed
Film, paper, aluminium foil, etc
1 - 10 colours
600 mm - 1400 mm
Aluminium rollers
Upto 200 m/min
Unwinder
Unwind type
Reel diameter
Unwind shaft
Tension controller
Single fixed shaft type or 2 shaft turret type unwinder
800 mm
Air shaft, tapper cone with solid shaft or shaftness
Fully automatic control system (A.C. Motor)
Infeed unit

Synchronized control (A.C. Motor)
Printing Unit
Frame
Cylinder
Chucking
Impression
Drying system
Doctor Blade
Ink system
Registration system
Cast iron
Diameter - 130 mm to 300 mm
Shaft with taper cone
One roll arm with pneumatic pressure system
Single chamber impingement slot dryer (electric, thermic oil, hot air generator, etc.)
Pneumatic pressure system
S. S. ink tray
Auto Registration control
Outfeed unit

Synchronized control (A.C. Motor)
Rewinder
Rewind type
Reel diameter
Rewind shaft
Tension controller
Single fixed shaft type or 2 shaft turret type rewinder
800 mm
Air shaft, taper cone with solid shaft or shaftness
Fully automatic control system (A.C. Motor)
