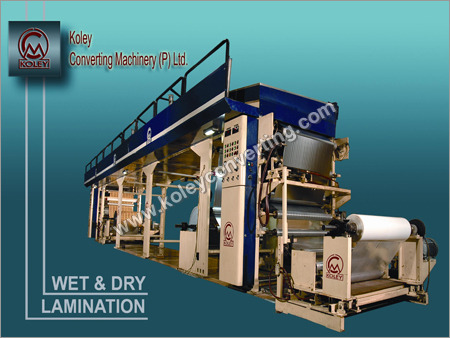

Wet & Dry Lamination Machine
Wet & Dry Lamination Machine
Wet & Dry Lamination Machine

Wet & Dry Lamination Machine:

As an eminent Dry Coating Lamination Machine, Manufacturer, Exporter, and Supplier, of India, we are engaged in presenting Dry Lamination Machine. These machines are designed for laminating various combination of flexible substrates for packaging with minimum labor and time. Our rage of Dry Lamination Machine has additional facilities such as Silicon coating, Adhesive coating for tapes, stickers and heat shrinkable coating on polyster foils and OLB. Our range of machine are best known for attributes like superb performance, supreme material quality, convenient to utilize, cost efficient and reliable and the likes.


The Wet and Dry Coating Lamination Machine specially designed multipurpose with additional facilities like Silicon coating, Adhesive coating for tapes, stickers and heat shrinkable coating on polyster foils and OLB. The machine is made up of C.I. heavy body. Pneumatic system can be fitted at no extra cost. It has a very comfortable exhaust system for solvent fumes. Tention control and web guide can also be provided at no extra cost.

Technical Specification



Basic Specification

Substrate
Machine

Speed Web Width

Films, Paper, Aluminium Foil, etc.
Upto 250 m/min (depending on Material & Adhesive Quality,
600 mm - 1400 mm

No. 1 Unwinder
Unwind Type
Reel Diameter
Edge Guide
Single fixed shaft type or 2 Shaft turret type unwinder
800 mm
Automatic Control

No. 2 Unwinder
Unwind Type
Reel Diameter
Edge Guide
Single fixed shaft type or 2 Shaft turret type unwinder
800 mm
Automatic Control

No. 3 Unwinder
Unwind Type
Reel Diameter
One shaft fixed type
Max. 400 mm
Core Locking

Air Expansion Shaft or Taper cone with solid shaft


Model - I
Model - II



Tension Control
Unwinder
Infeed
Coating
Nipping
Outfeed
Tunnel
Rewinder
Powder Brake / A.C. Motor
Nil
A.C. Motor
A.C. Motor
Nil
A.C. Motor
A.C. Motor
A.C. Motor
A.C. Motor
A.C. Motor
A.C. Motor
A.C. Motor
A.C. Motor
A.C. Motor
Coating System
Wet
Dry
3 Roll Coating System
Gravure Coating

Drying System

Quick Return type chamber impingement slot dryer (Electric, Hot Oil or Hot Air Generator etc.)
Rewinder
Rewind Type
Reel Diameter
Single fixed shaft type or 2 shaft turret type rewinder
800 mm
